Installation
WiFi Hub Pro is equipped with a Type-C power port (other end is Type-A), allowing users to choose the most suitable option based on their installation needs.
If you plan to install the device outside the cabinet, you can opt for a concealed wiring setup, which requires drilling a 12mm hole in the cabinet to route the power cable from the inside.
Alternatively, power can be supplied via the bottom of the screen, which is commonly used when installing the WIFI HUB PRO inside the cabinet.

Two optional stands available for separate purchase.
• WiFi Hub Pro Dedicated Stand

Available for bundle purchase

• WiFi Hub Pro Desktop Stand

Available for bundle purchase

WiFi Hub Pro Features
• The mobile app lets users customize WiFi Hub Pro by:

• Easily tailor the display and interaction for a smarter user experience.

WiFi Hub Pro supports up to 20 connected devices. Once a device is added to a designated aquarium, WiFi Hub Pro will automatically and seamlessly detect and connect all devices associated with that aquarium, enabling WiFi functionality and allowing for centralized remote control.
This design not only significantly simplifies device integration but also allows users to upgrade their existing systems to a smart, remote-controlled platform at minimal cost—ushering in a new era of efficient and convenient aquarium device management.

Note
• WiFi Hub Pro is compatible with most bluetooth devices (WiFi devices like the Smart Power Strip is incompatible) released by Chihiros since its inception. However, some older models may not support full "Home Screen Control" functionality.
• Works on both 2.4 GHz and 5 GHz Wi-Fi network.

• One WiFi Hub Pro supports only one tank.

• WiFi Hub Pro only supports showing Manual and Auto modes settings, doesn’t support showing Customize mode settings.

• WiFi Hub Pro screen currently does not support the Cooling Fan temperature alarm push function.

Chihiros Smart Ecosystem Architecture
All Chihiros Bluetooth devices connect to the WiFi Hub Pro via Bluetooth. The WiFi Hub Pro then connects to the Chihiros Cloud via WiFi, and the My Chihiros App on the user’s mobile device stays synchronized in real time. This architecture enables seamless remote connectivity and data communication between devices and smartphones.
Chihiros Cloud features robust concurrent data handling capabilities, ensuring fast and stable data transmission and command delivery regardless of how many WiFi Hub Pros are in use. Its built-in intelligent scenario service monitors all connected devices in real time, and in case of an anomaly, immediately pushes notifications to the mobile app, ensuring users stay informed at all times.
Some devices are equipped with environmental data reporting capabilities. Chihiros Cloud can preprocess and intelligently analyze these data, and based on user-defined rules, automatically trigger notifications or link to control other devices.
In other words, once devices are connected via multiple WiFi Hub Pros to Chihiros Cloud, the system enables cross-location data interoperability and unified management—supporting intelligent linkage and centralized control across multiple aquariums, whether at home or in the office.
For example, if a temperature sensor in one tank detects an anomaly, the system can immediately send an alert and automatically activate fans, lights, or alarms on other tanks, delivering a truly global, multi-device, cross-scenario intelligent control experience.

Chihiros Smart

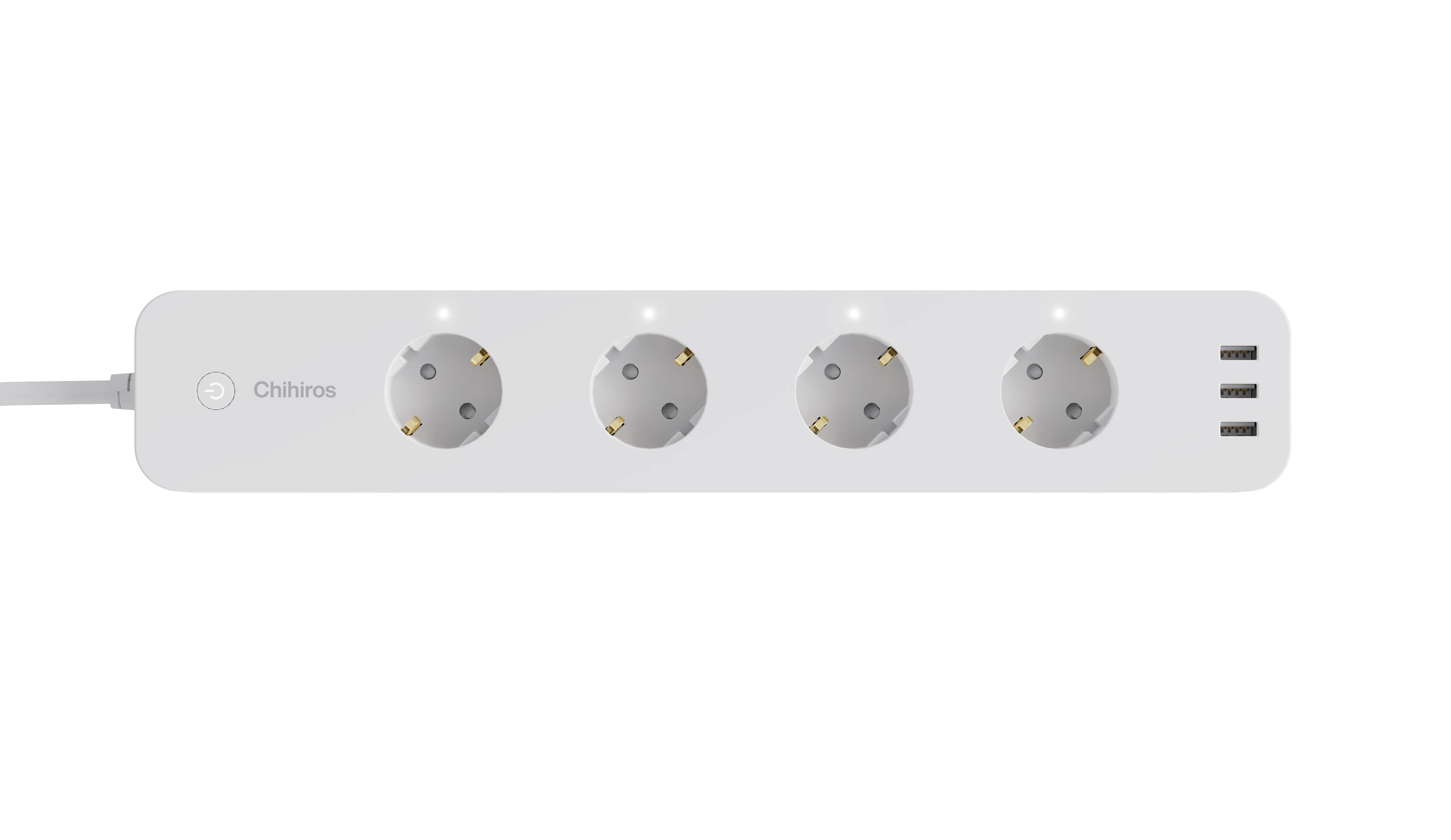

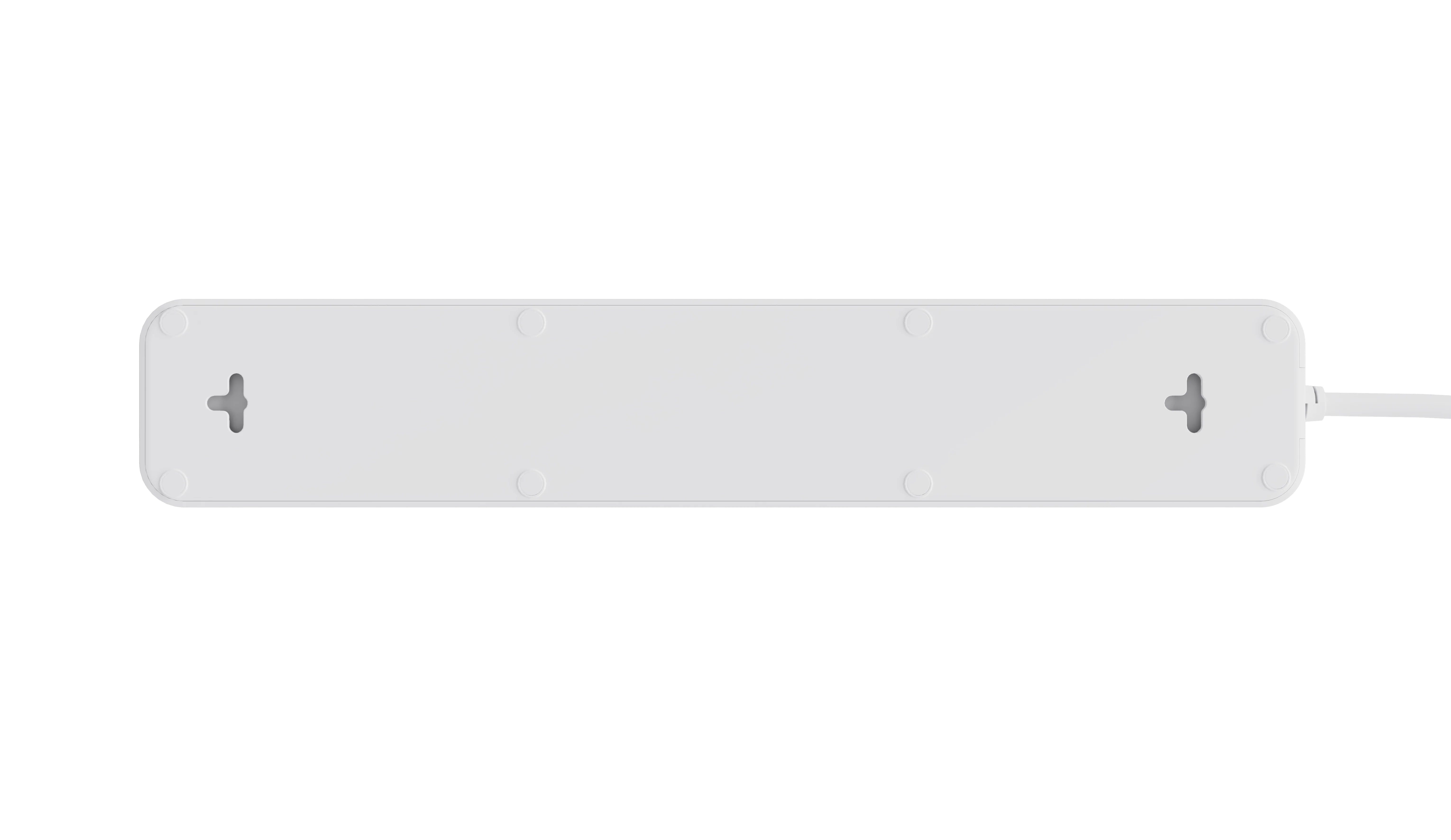

Chihiros Smart Power Strip

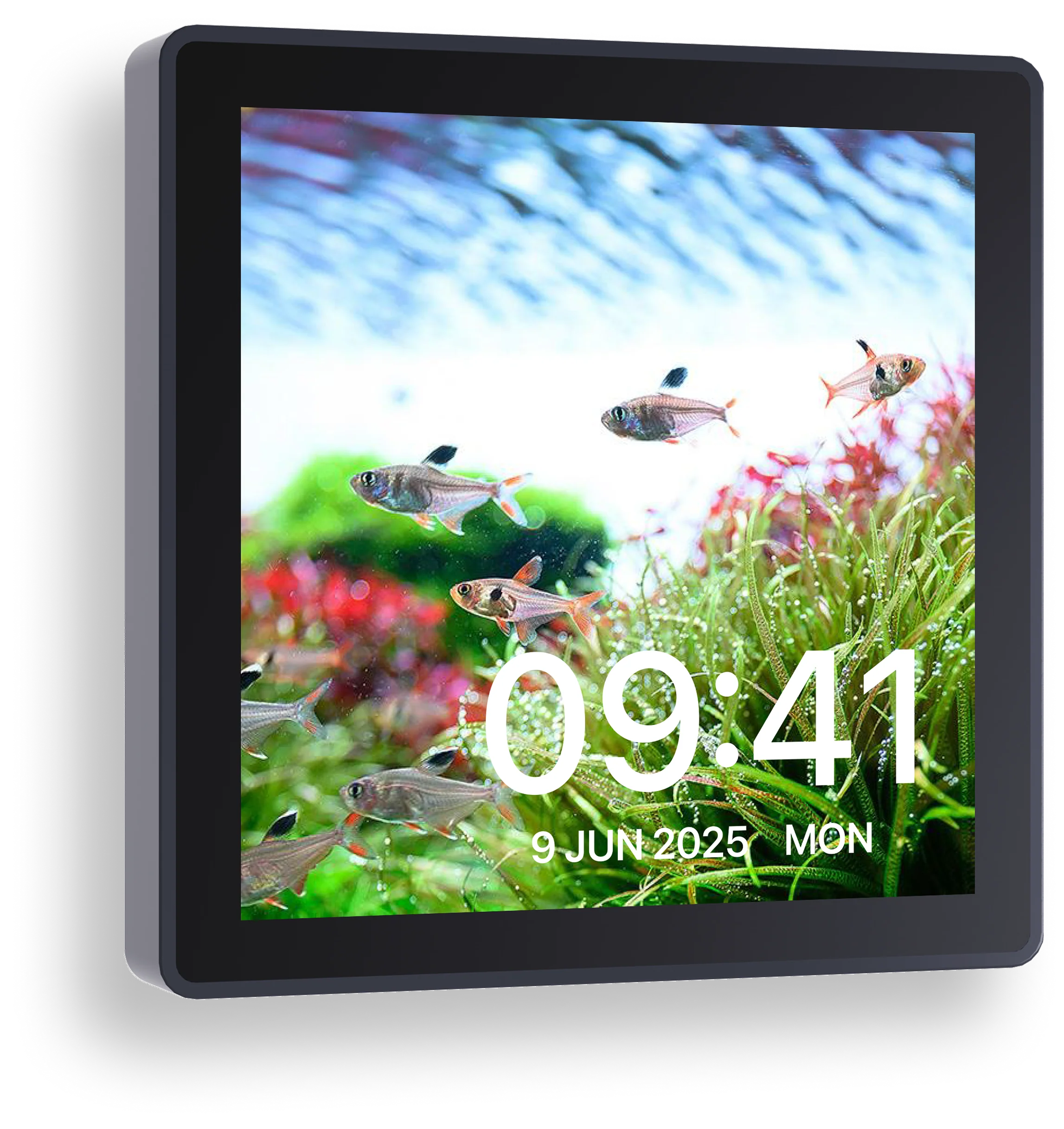

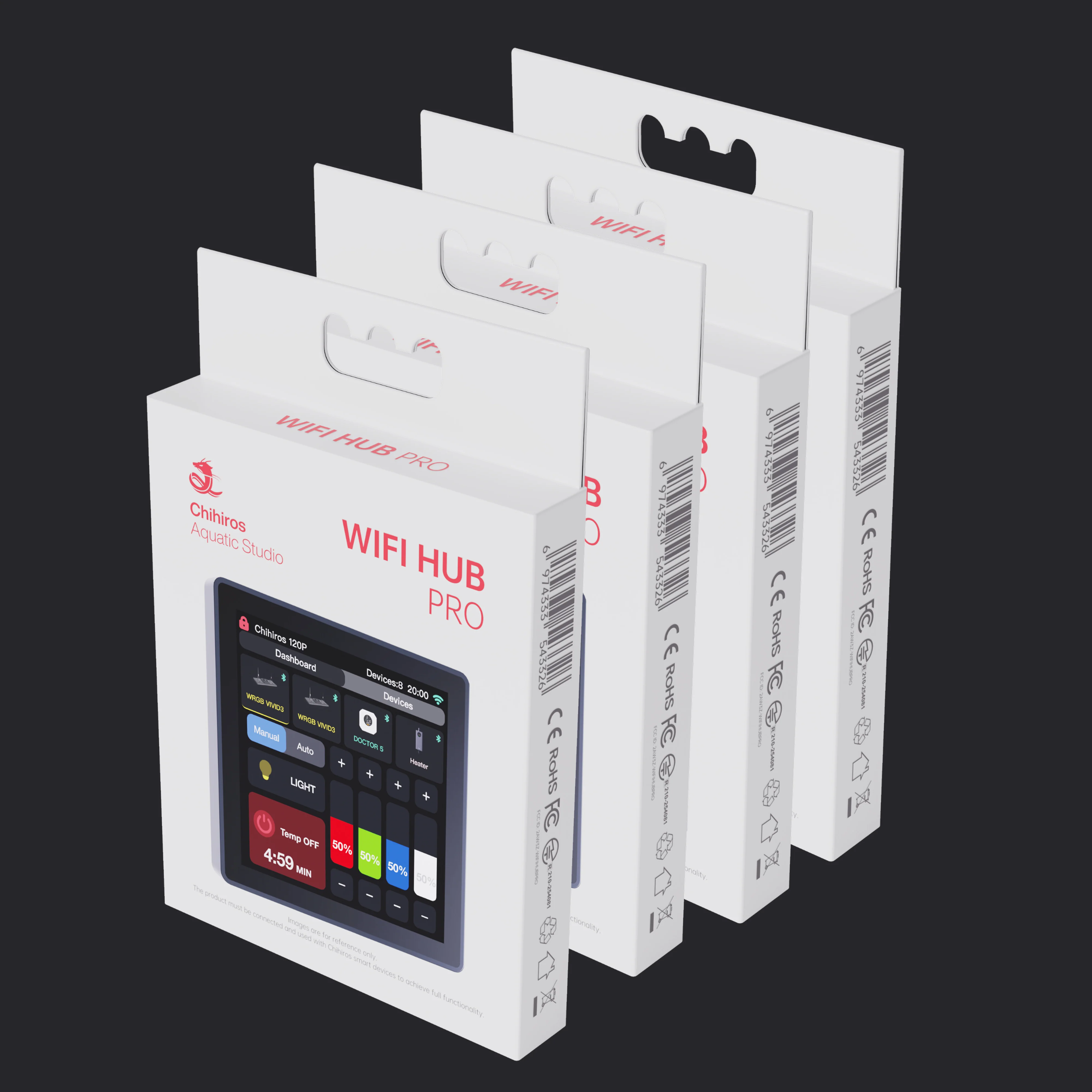

Chihiros WiFi Hub Pro

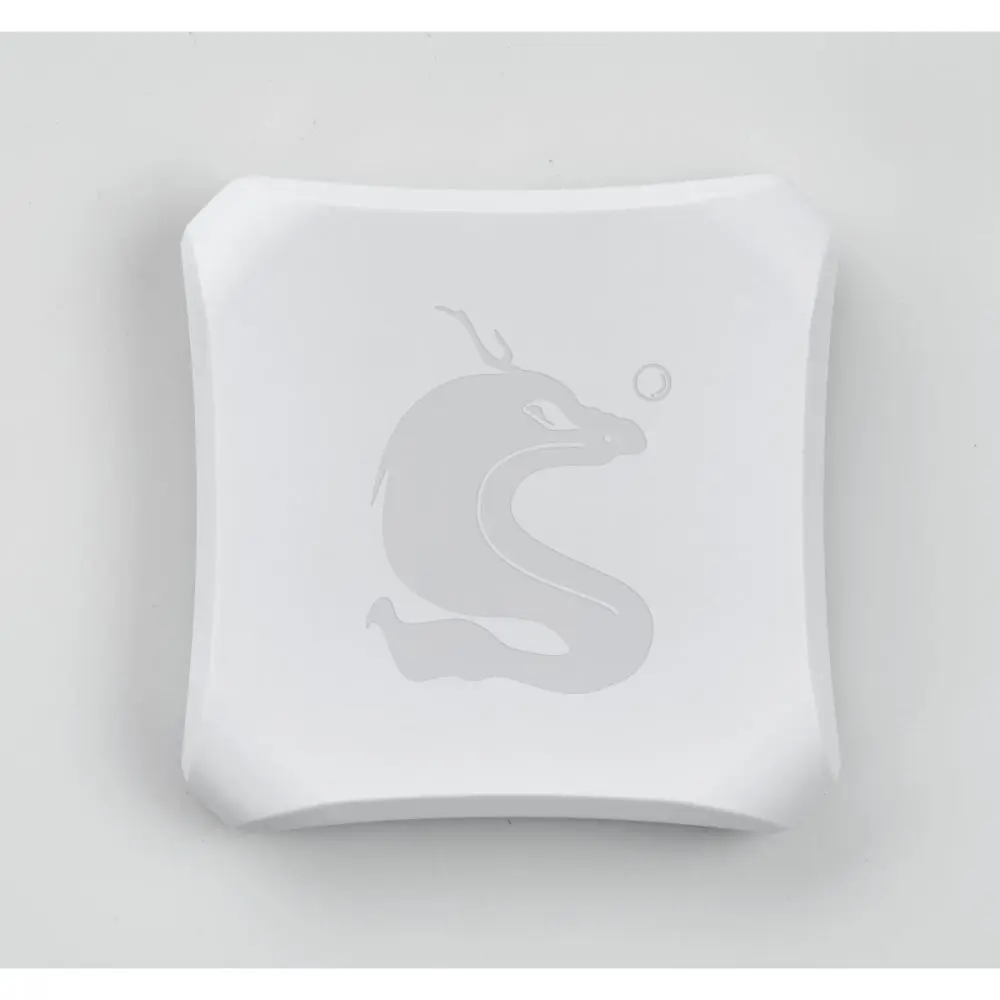

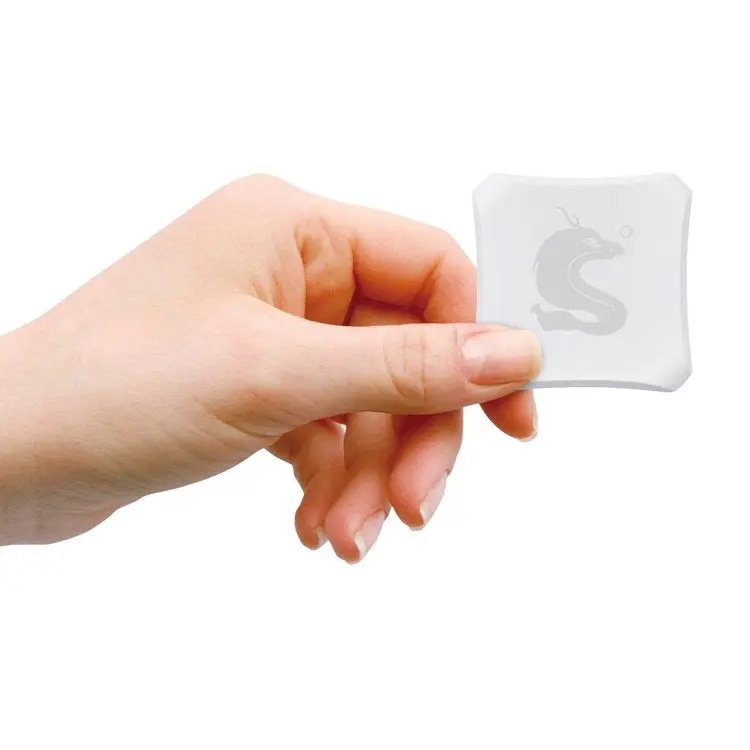

Chihiros Wifi Hub – DISCONTINUED (FOR DISPLAY ONLY)
